SoluMag® 1100 Magnesium Alloy

SoluMag® 1100 is a magnesium alloy that has a high dissolution rate in aqueous chloride environments.

This lightweight alloy is available as balls, extruded rods, bars, tubes and profiles to produce components that have strength and ductility in demanding environments, as well as a controlled dissolution rate that will effectively dissolve the component.

Product Information

Find out more about this product below.

Product Forms
  • Seamless Tubes/Bars
  • Spheres
  • Machined Components
Typical Applications
  • Tube/Bar Raw Material for Downhole Completion Tools
  • Frac Balls
  • Customized Tube/Bar OD’s/ID’s
  • Machined Components
Specifications
  • ASTM B107 for extruded products, dimensions only
  • Corrosion rate according to agreed testing protocol
  • Manufactured to aerospace quality metal cleanliness standards
Component Sizes
  • Machined spheres from ½ inch to 5 inches diameter
  • Extruded round rod from ½ inch to 5 inches diameter
  • Tube and bar sizes available upon request

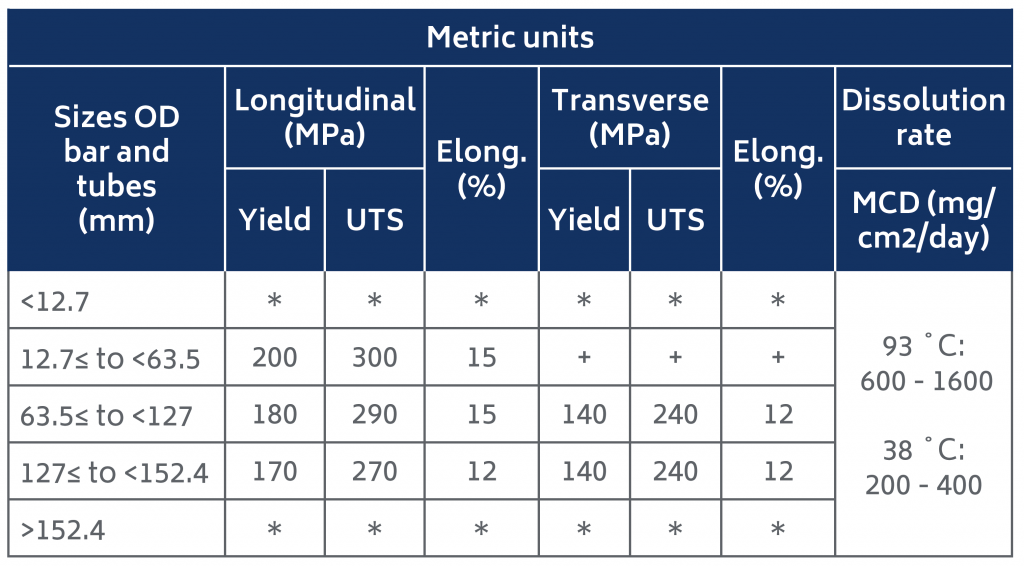

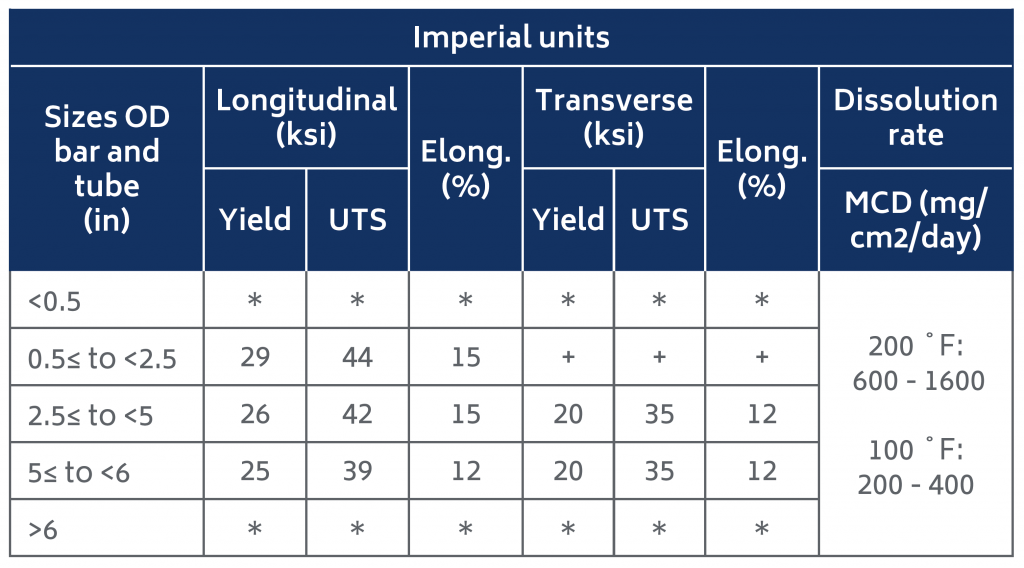

Mechanical Properties

Click image to enlarge specification information

* Contact Luxfer representative for additional information
+ Transverse data not available

Click image to enlarge specification information

* Contact Luxfer representative for additional information
+ Transverse data not available

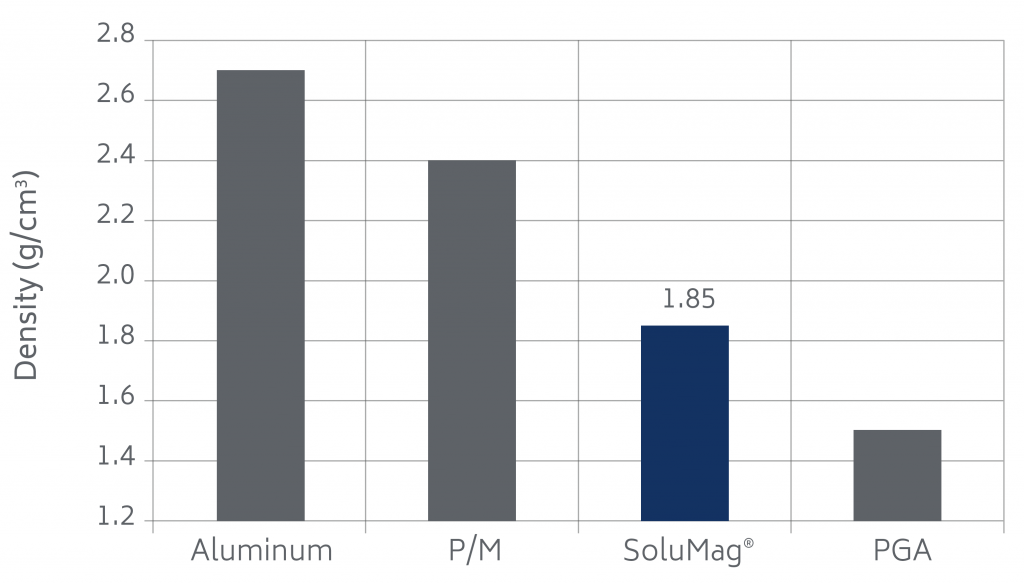

Density Comparison

Click image to enlarge specification information

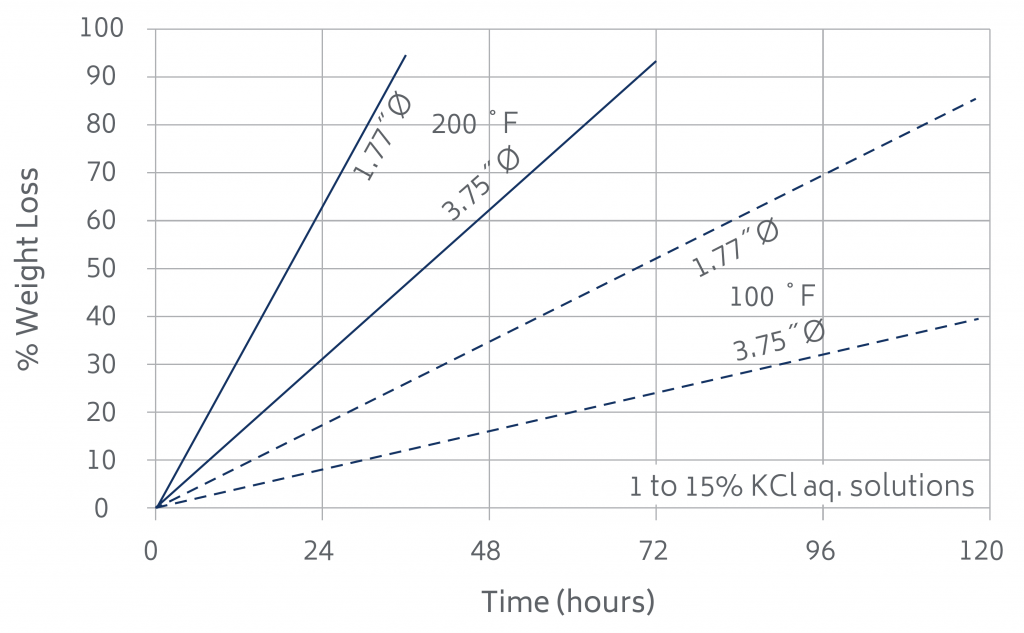

Dissolution Curve

Click image to enlarge specification information
