SoluMag® HD Magnesium Alloy

SoluMag® HD is a highly ductile magnesium alloy that has a high dissolution rate in aqueous chloride environments.

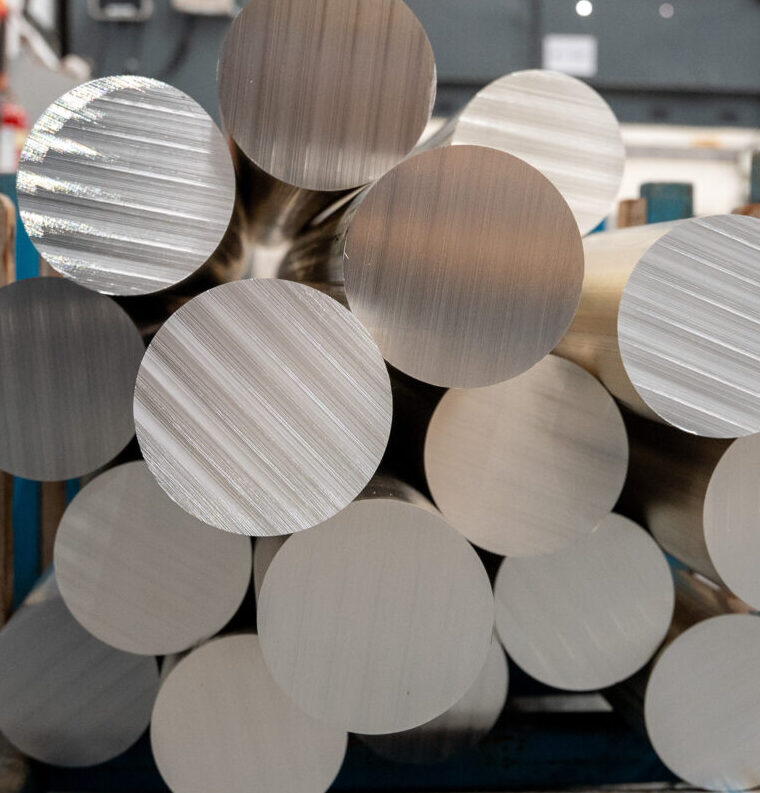

SoluMag® HD offers a new solution to downhole challenges by having superior ductility to conventional dissolvable magnesium alloys, with a well-controlled dissolution rate. This lightweight alloy is available as extruded tube, rods, bars and profiles.

Product Information

Find out more about this product below.

Product Forms
  • Seamless Tubes/Bars
  • Spheres
  • Machined Components
Typical Applications
  • Tube/Bar Raw Material for Downhole Completion Tools
  • Frac Balls
  • Customized Tube/Bar OD’s/ID’s
  • Machined Components
Specifications
  • ASTM B107 for extruded products, dimensions only
  • Corrosion rate according to agreed testing protocol
  • Manufactured to aerospace quality and metal cleanliness standards
Component Sizes
  • Tubes and bars from less than 0.05 inches to as large as 6 inches (OD)
  • Tube and bar available in varying lengths

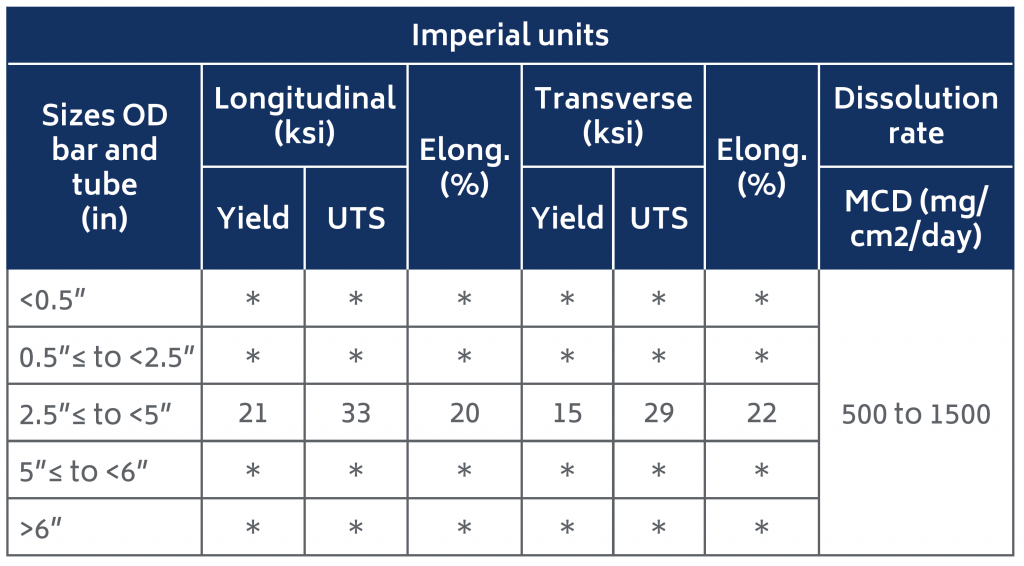

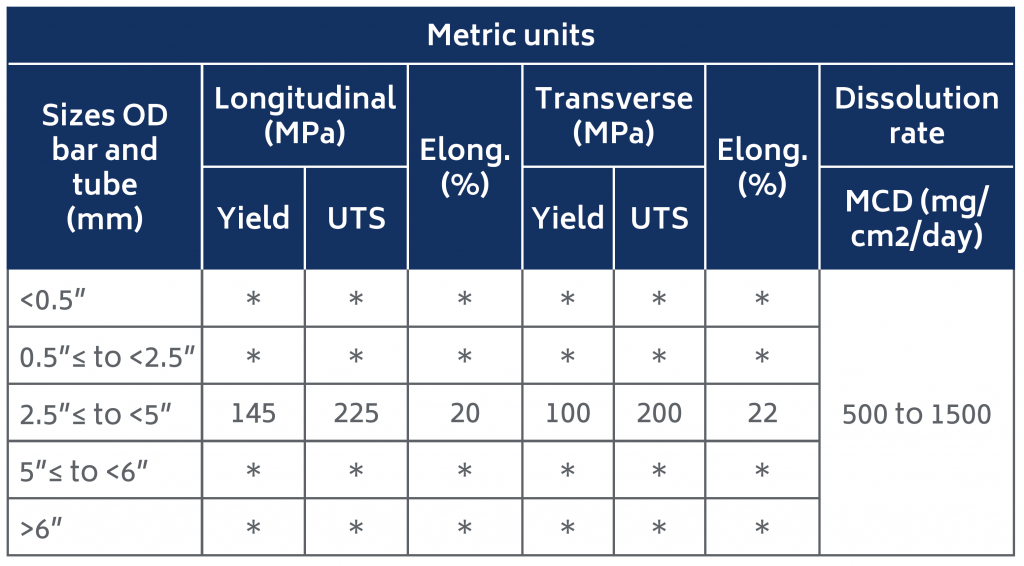

Mechanical Properties

Click image to enlarge specification information

* Contact Luxfer representative for additional information
+ Transverse data not available

Click image to enlarge specification information

* Contact Luxfer representative for additional information
+ Transverse data not available

Support and downloads

SoluMag® HD Datasheet
