SoluMag® ND80

Solumag® ND80 is a high strength non-dissolving, dissolution resistant magnesium alloy.

SoluMag® ND80 is a lightweight, high-strength, non-dissolving, dissolution-resistant magnesium alloy that provides an excellent balance of strength and dissolution performance whilst being cost effective.

Component designs in SoluMag® ND80 can be 20% to 30% lighter than a corresponding aluminum design.

The properties of SoluMag® ND80 are well suited for its use as feedstock material from which to machine downhole components.

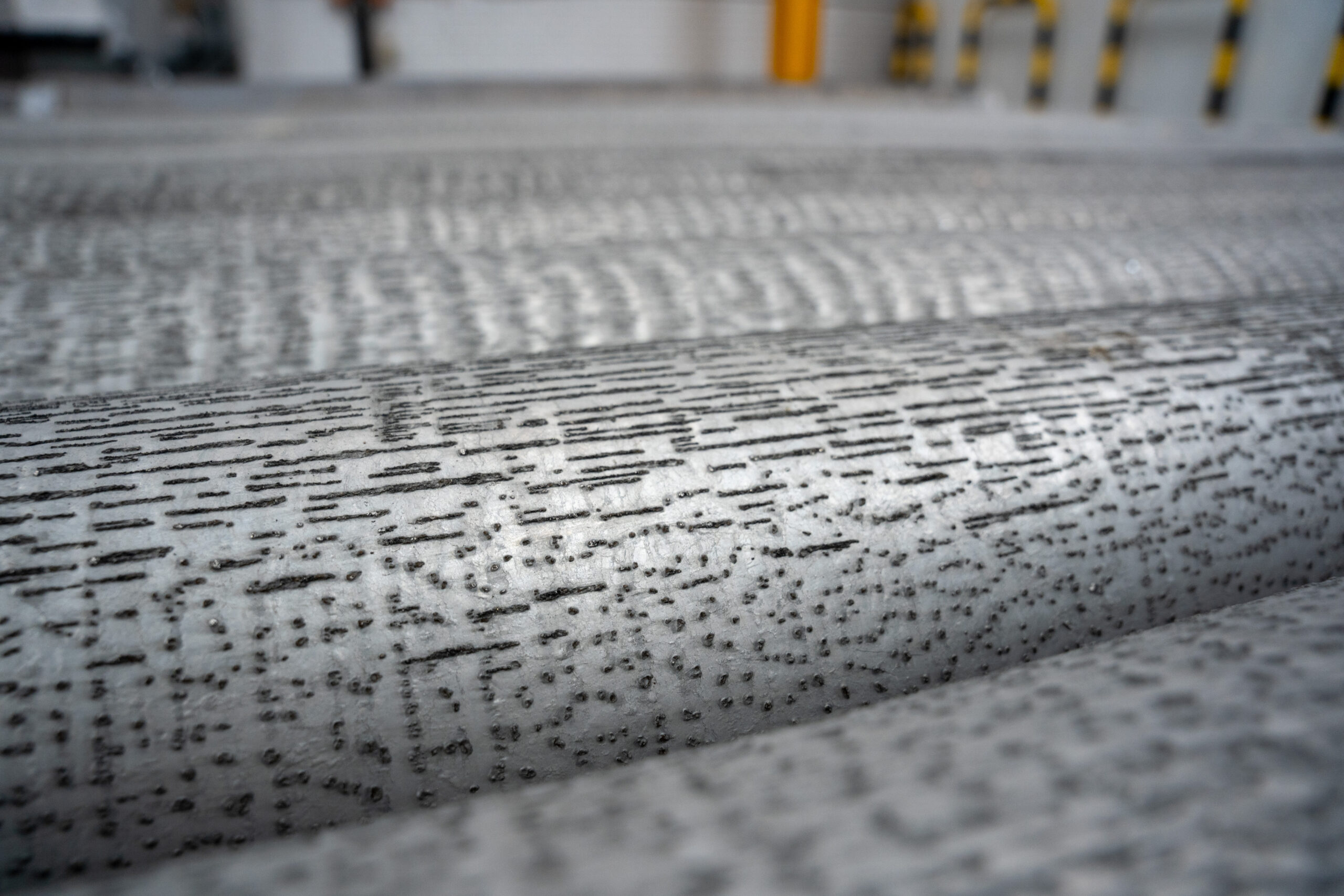

This lightweight alloy is available as extruded rods, bars, and tubes to produce components in demanding downhole environments.

Product Information

Find out more about this product below.

Applications

Machined components for downhole completion tools in oil and gas applications.

Product Forms

Seamless Tubes/Bars
Spheres
Machined Components

Typical Applications

Tube/Bar Raw Material for Downhole Completion Tools
Frac Balls
Customized Tube/Bar OD’s/ID’s
Machined Components

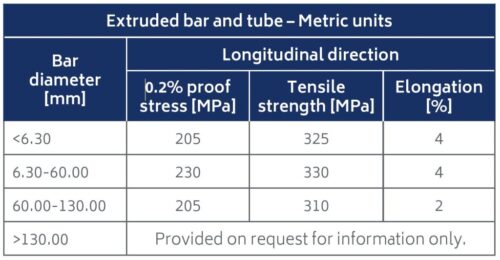

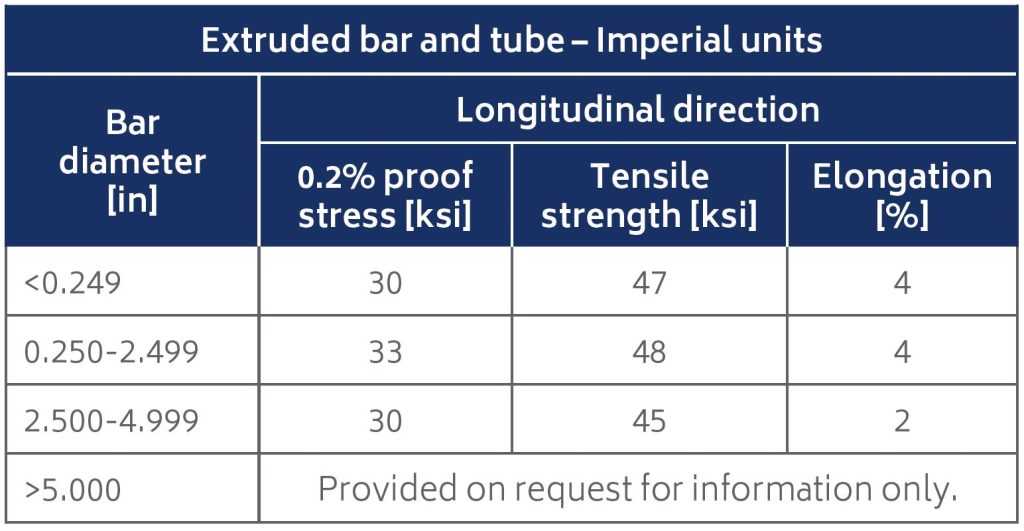

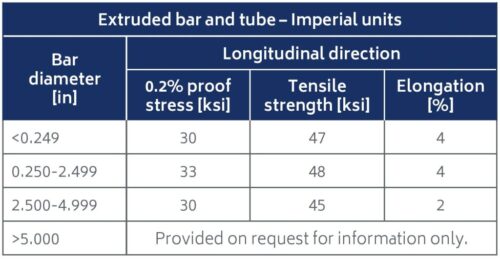

Mechanical Properties

Click image to enlarge specification information

Component Sizes

Extruded round rod from ½ inch to 5 inches diameter
Other tube and bar sizes available upon request

Specifications

ASTM B107 and B107M – Extrusion

Support and downloads

SoluMag® ND80 Datasheet
