AZ80A Extruded Magnesium Alloy

AZ80A is a high-performance, low-density wrought magnesium base alloy composed of aluminium, zinc, and manganese. With a density approximately 30% less than similar aluminium alloys, AZ80A offers significant weight savings for designers. It is specifically engineered for use as CNC machining bar stock, available in various shapes including round, square, rectangular, and custom solid configurations.

This lightweight alloy is available as balls, extruded rods, bars, tubes and profiles to produce components that have strength and ductility in demanding environments, as well as a controlled dissolution rate that will effectively dissolve the component.

Product Information

Find out more about this product below.

Specifications of supply

Standard: ASTM B107-13
Werkstoff: 3.5812.08

Typical Applications

AZ80A is ideal for high-performance applications where weight reduction is critical. Common uses include:

• Man-portable optics
• Munitions
• Motorsport
• Aerospace
• Space
• General structural applications

Physical Properties

Physical properties
• Specific Gravity: 1.8 g/cm3
• Coefficient of Thermal Expansion: 26 x 10^-6 K^-1
• Thermal Conductivity: 78 W/m·K
• Specific Heat: 1050 J/kg·K
• Electrical Resistivity: 145 nΩ·m
• Modulus of Elasticity: 44 GPa
• Poisson’s Ratio: 0.326
• Melting Range: 540 – 640˚C
• Damping Index: 0.09
• Brinell Hardness: 70-90s

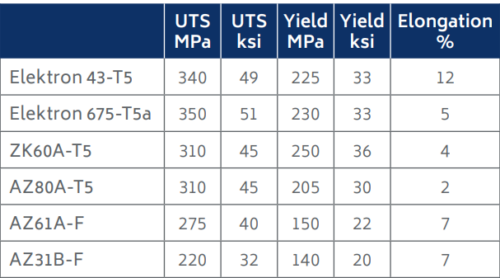

Material Properties

Click image to enlarge specification information

Machining

AZ80 machines faster than any other metal, making it highly efficient for CNC machining.

Corrosion resistance

• Corrosion Rate: < 30 mpy

Surface treatment

AZ80 can undergo various surface treatments, including anodising with treatments such as:
• Keronite®
• Tagnite®
• MagOxid®

Additionally, hexavalent chromium-free conversion coatings are available, such as:

• Alodine® 160/161
• Surtec® 650
• Metalast® TCP-HF
• Oxsilan® MG 0611
• Gardobond® X4729
• MagPass®

Like all magnesium alloys, AZ80 can be painted or coated using conventional methods. For further details and specific application advice,
please refer to the full technical datasheet or contact our technical support team.
