SoluMag® FW Magnesium Alloy

SoluMag® FW is specifically designed to dissolve in very low chloride environments.

SoluMag® FW offers significant advantages over other dissolving materials in that it retains super-dissolving properties in conditions where other dissolvables would not function.

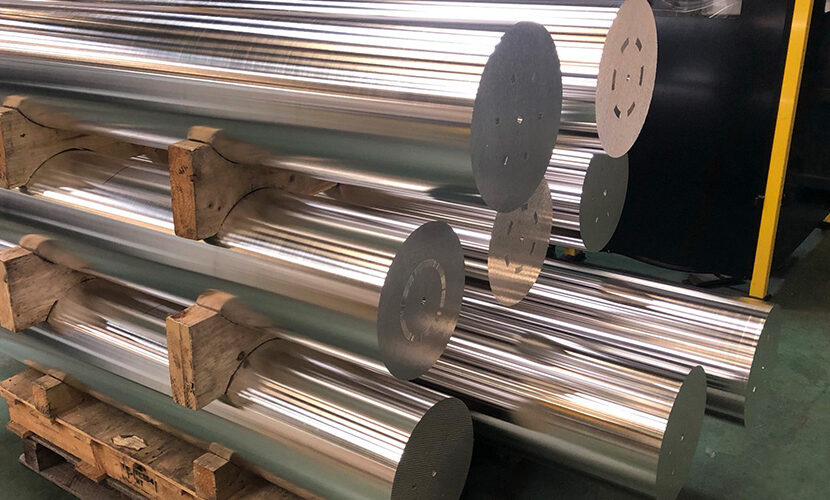

This lightweight alloy is available as balls, extruded rods, bars, tubes and profiles to produce components that require strength and ductility in demanding environments as well as a controlled dissolution rate that will effectively dissolve the component in a known time.

Product Information

Find out more about this product below.

Product Forms
  • Seamless Tubes/Bars
  • Spheres
  • Machined Components
Typical Applications
  • Tube/Bar Raw Material for Downhole Completion Tools
  • Frac Balls
  • Customized Tube/Bar OD’s/ID’s
  • Machined Components
Specifications
  • ASTM B107 for extruded products, dimensions only
  • Corrosion rate according to agreed testing protocol
  • Manufactured to aerospace quality and metal cleanliness standard
Component Sizes
  • Machined spheres from ½ inch to 5 inches diameter
  • Extruded round rod from ½ inch to 5 inches diameter
  • Tube and bar sizes available upon request

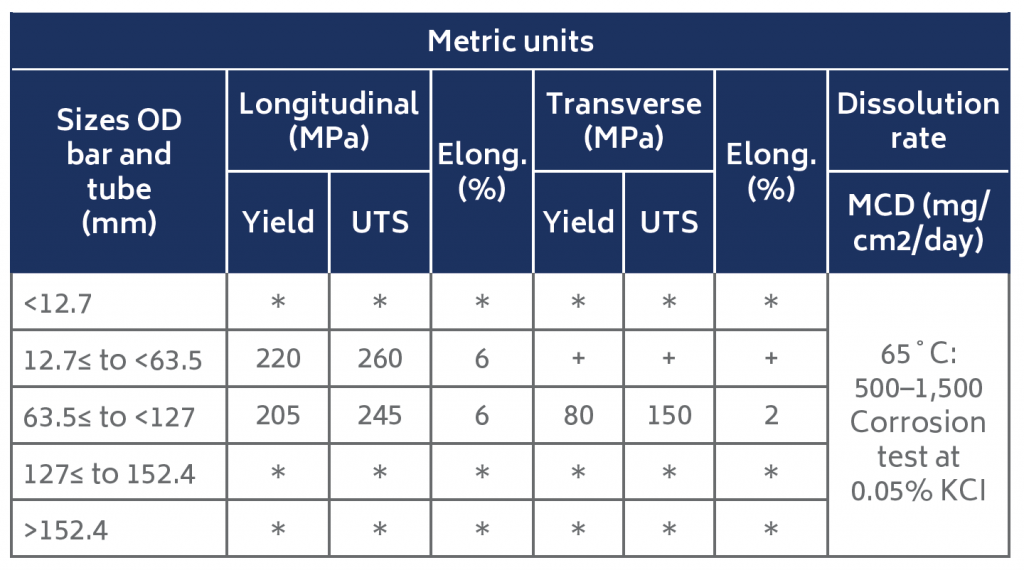

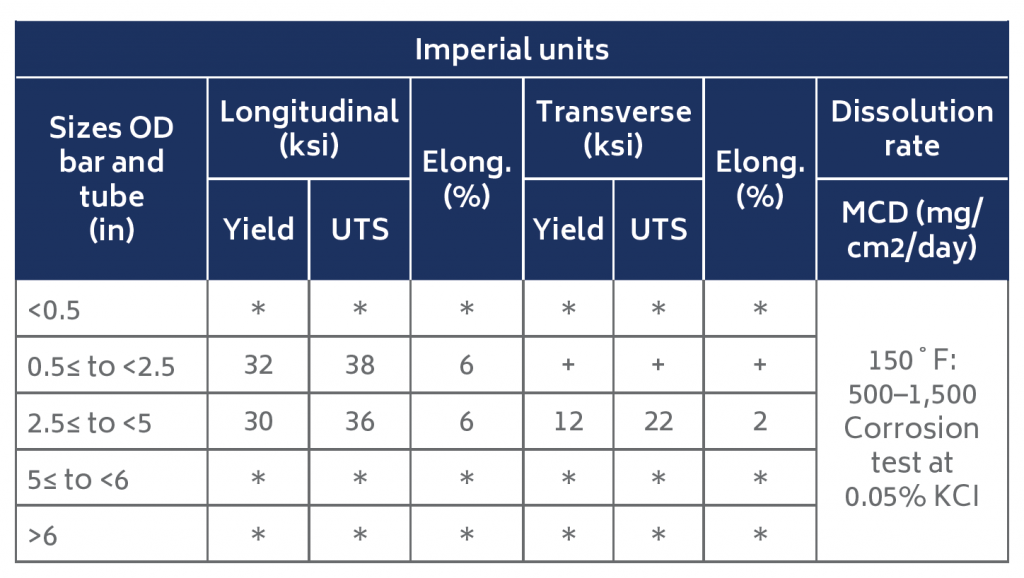

Mechanical Properties

Click image to enlarge specification information

* Contact Luxfer representative for additional information
+ Transverse data not available

Click image to enlarge specification information

* Contact Luxfer representative for additional information
+ Transverse data not available

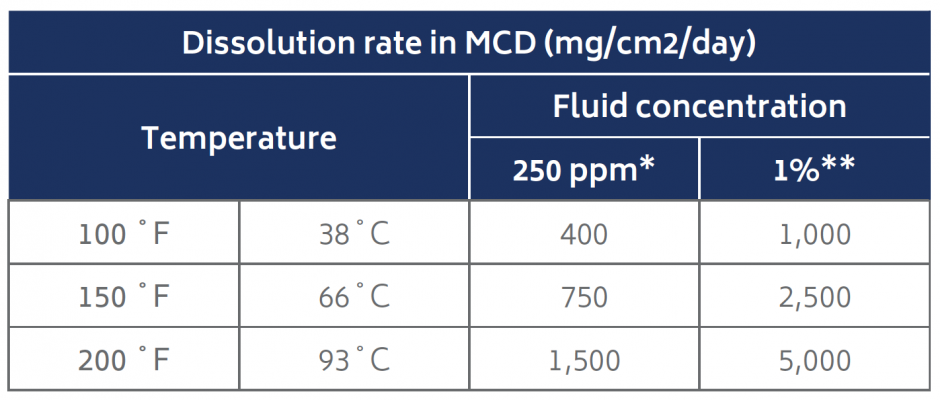

Additional Information

Click image to enlarge specification information

*Typical chloride content in ground water sources
**Chloride ions present in water. KCl used as chloride source

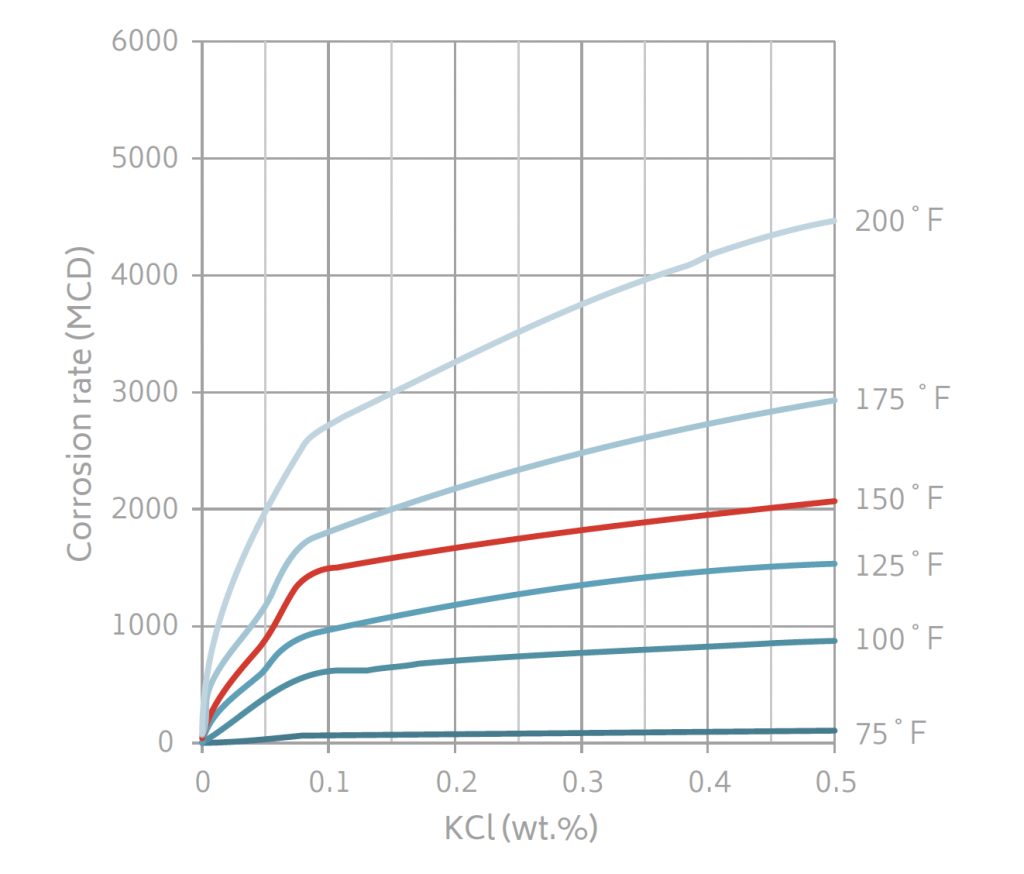

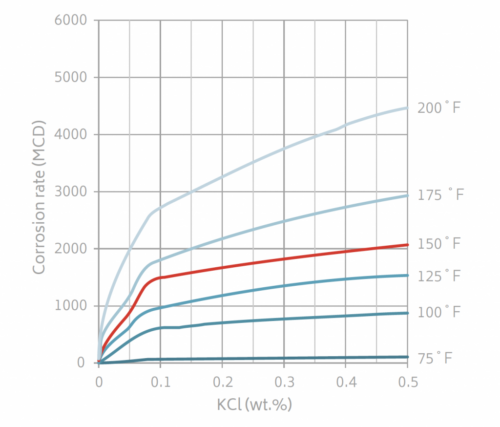

Dissolution Rate

Click image to enlarge specification information

Support and downloads

SoluMag® FW Datasheet
